ObjectSED

$60.00

ObjectSED is an objected oriented drafting application for the structural engineering detail. It supports some joint design and basic detail drawing for the structural steel building by using AISC LRFD 99.

Additional Features

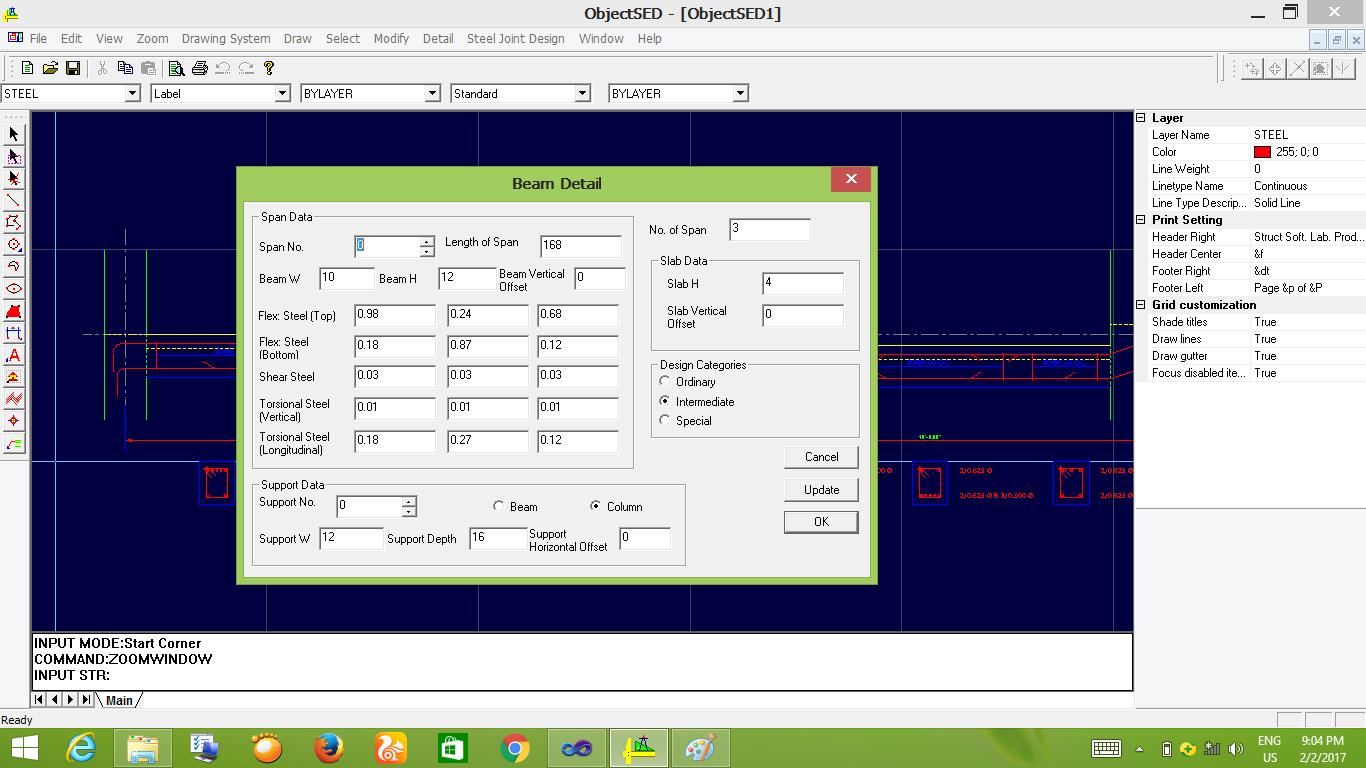

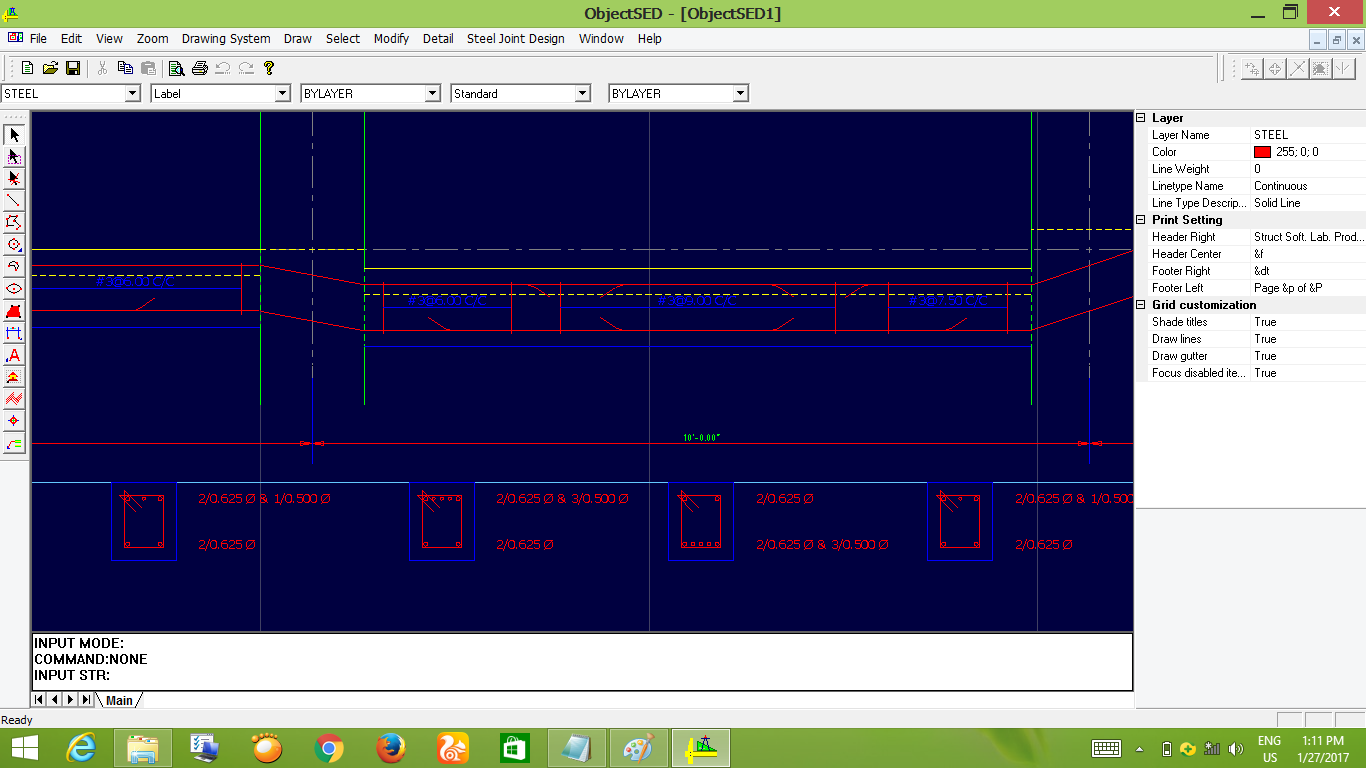

By using this application, it will help to detail out RCC floor longitudinal section showing re-bar arrangement and cutailment based on the design result of ETABS. You don't even need to draw anything but just filling the data in a dialog box.

Compatibility

The drawing database is compatible with the DXF entities of wellknown application AutoCAD.

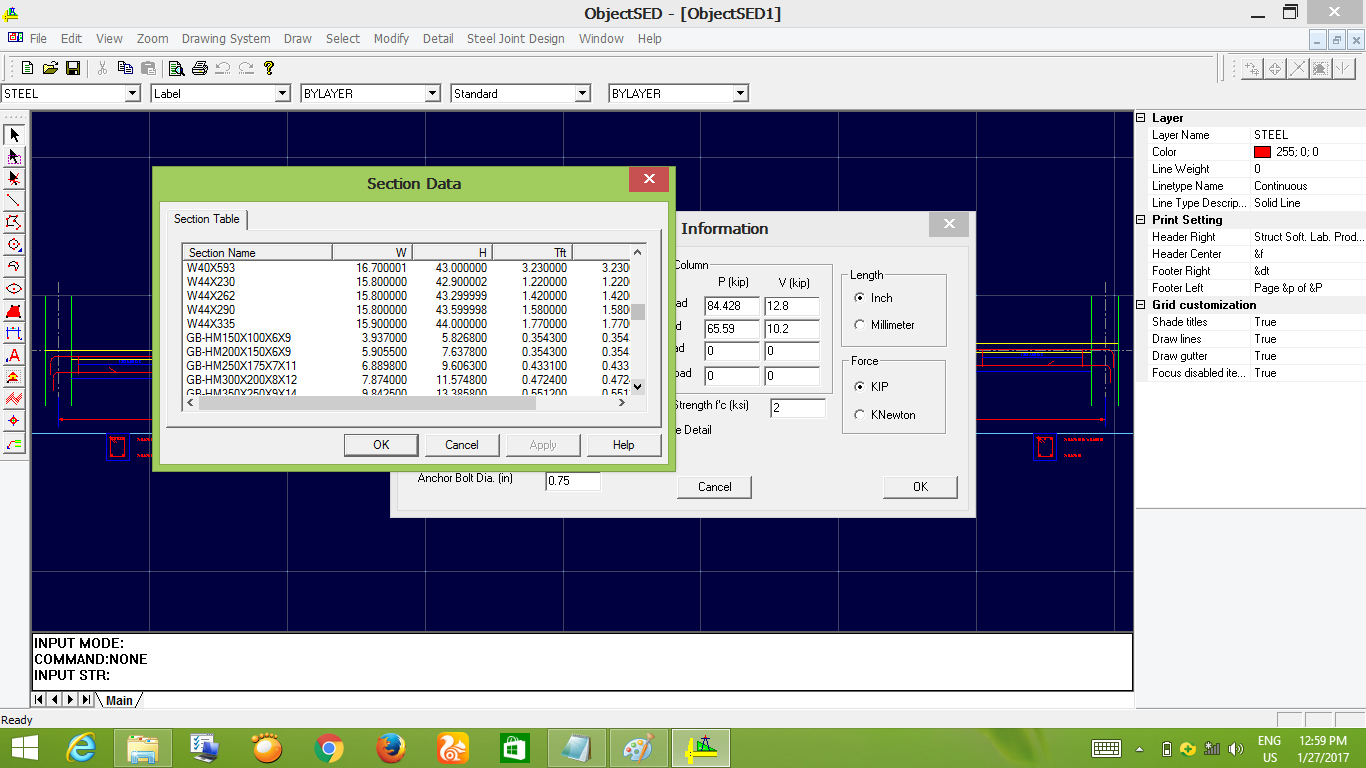

To get easy input, replaceable structural steel section library is linked in dialog box. US, CHINA, JAPANESE and other standard sections are provided. User may use the any customised dimentions. Two types of unit can be changed while inputting the data. (in, mm, kip, kN)

Structural Steel Detailing

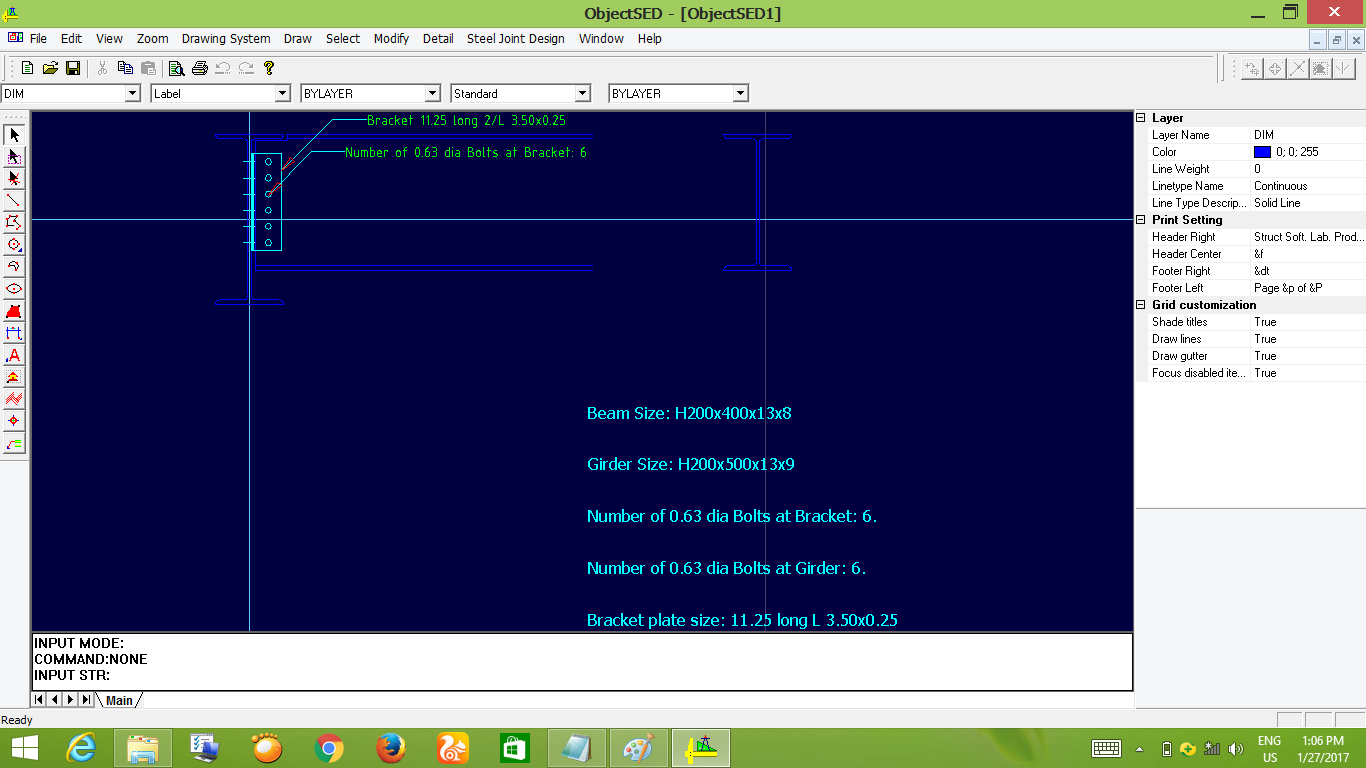

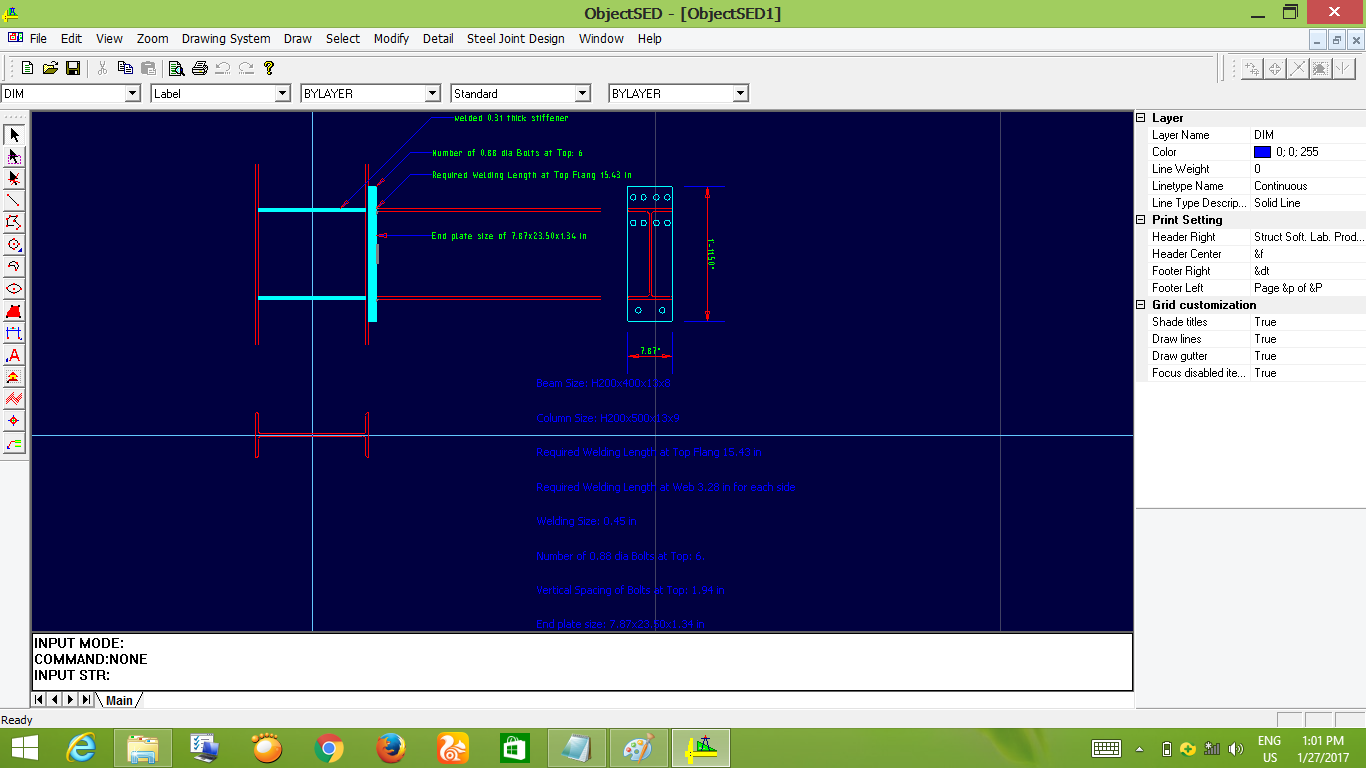

Choosing one of the steel design items, one can input detail information about the joint (structural connection) such as dimension of beam and column, load acting on the joint, joint type specific design information and etc.

Available Structural Steel Connections

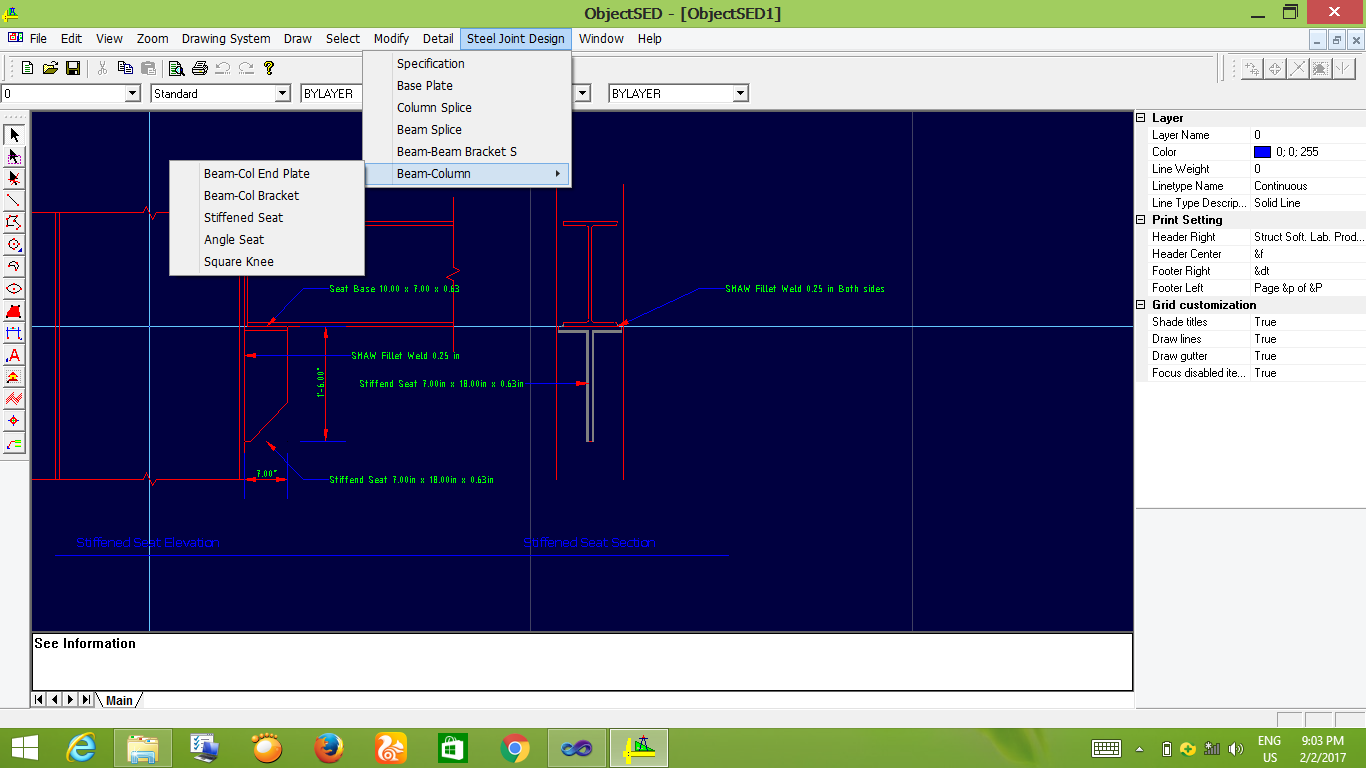

Structural steel connection design menu.

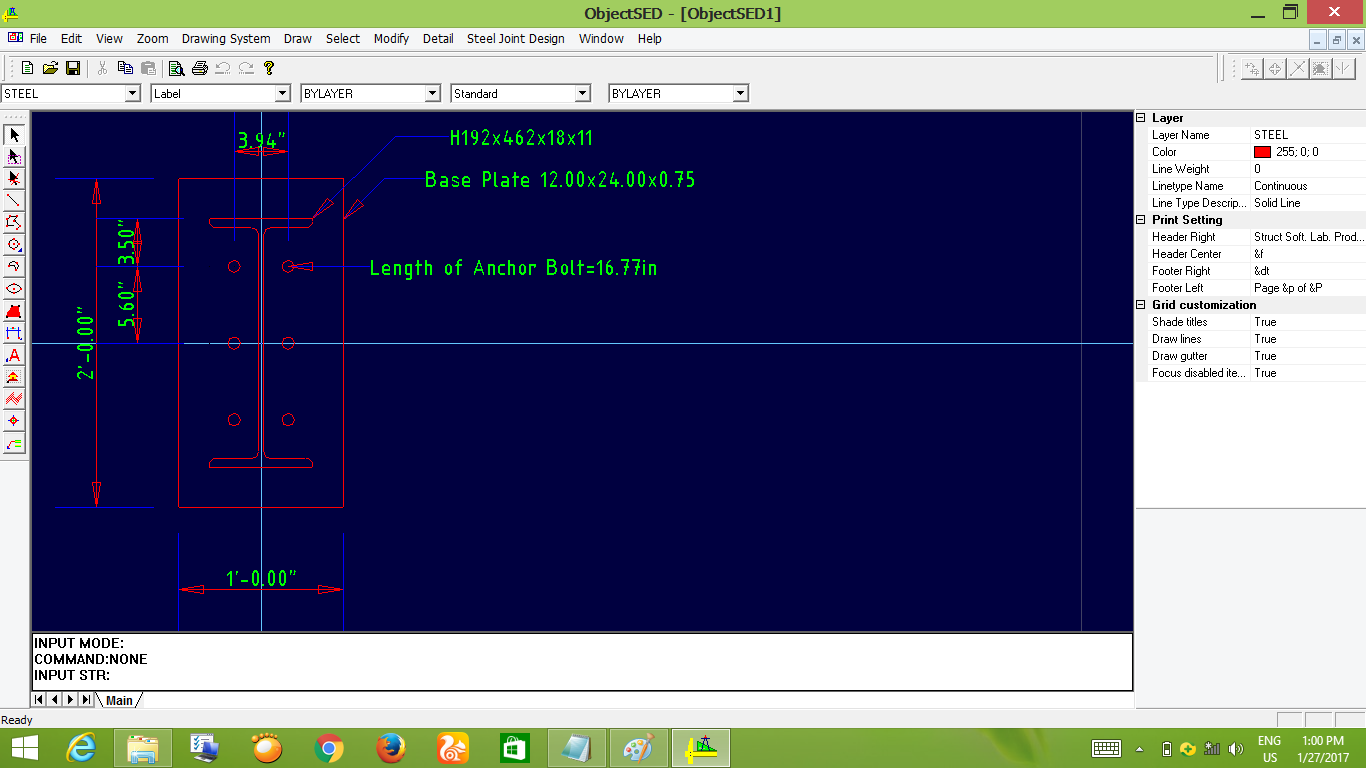

  1. Column Base Plate
  2. Column Splice
  3. Beam Splice
  4. Beam to Beam Connection
  5. Beam-Column End Plate Connection
  6. Beam-Column Welded Flang & Bracket Connection
  7. Beam-Column Stiffened Seat
  8. Beam-Column Angle Seat
  9. Rafter Beam-Column Square Knee Connection
