PostStruct

$80.00

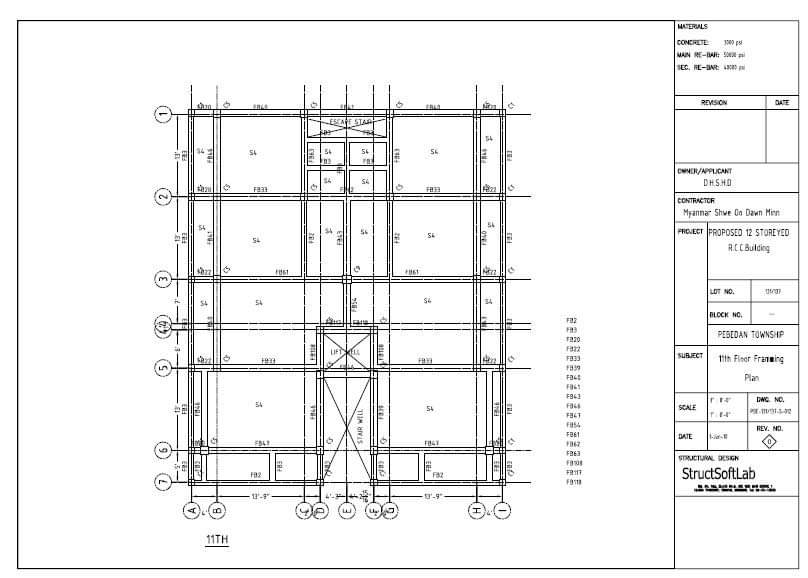

PostStruct is a tool to generate detailed drawings, including plans and sections with labels to structural elements. Rebar assignments are well tabulated. Building performances are checked according to IBC irregularity.

It use exported text files from ETABS (9.5 - 9.7.4) application.

Basic use

Use ETABS 9.5 - 9.7.4 for Modelling
Create RCC. model reflect to actual building to be constructed.
Assign appropriate properties and loadings
Run Analysis and design
Generate text out files
Load text files from PostStruct

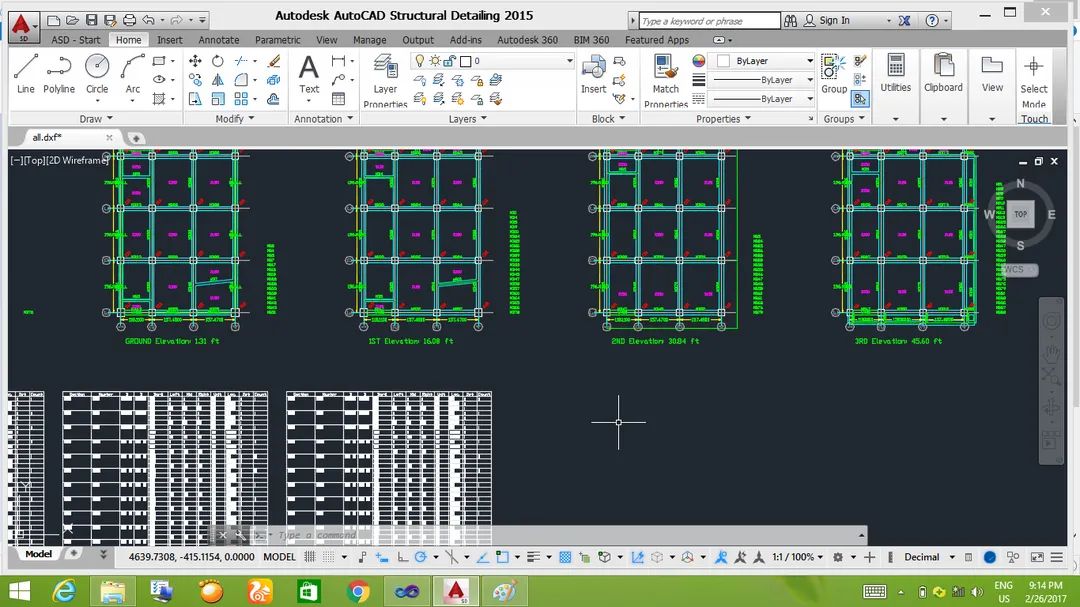

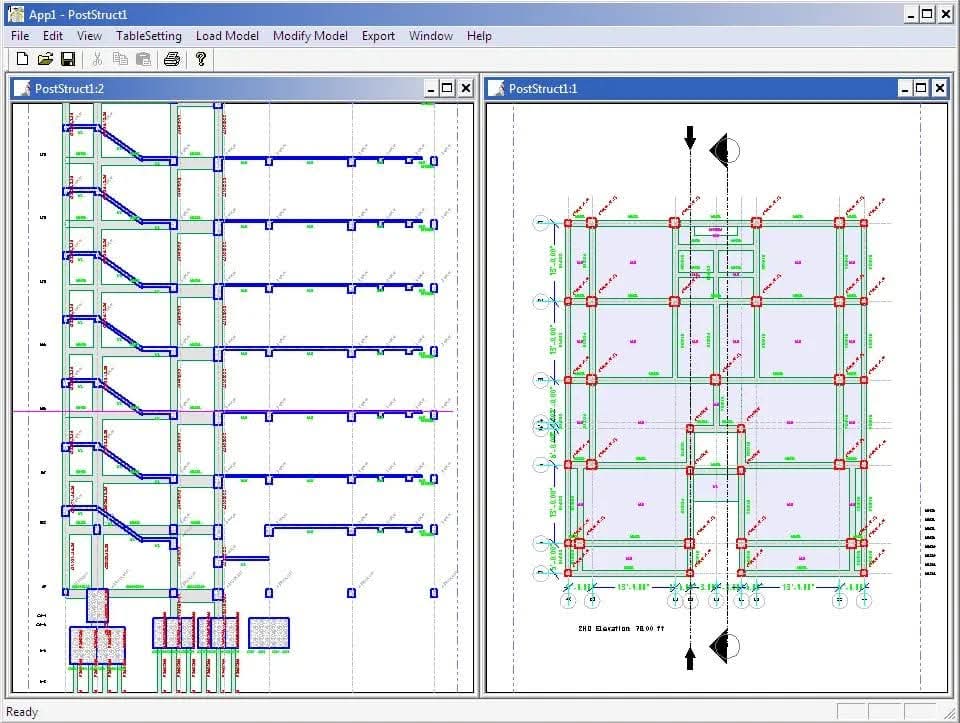

Generate drawings and export as dxf files in PostStruct

Advanced use

(Enviromental loadings)

Apply wind load and earthquake loading using equivalent lateral load method
Assign appropriate structural properties to elements in ETABS
Run linear static analysis including additional loads
Export output result files as text
Generate drawings and performance checks in PostStruct

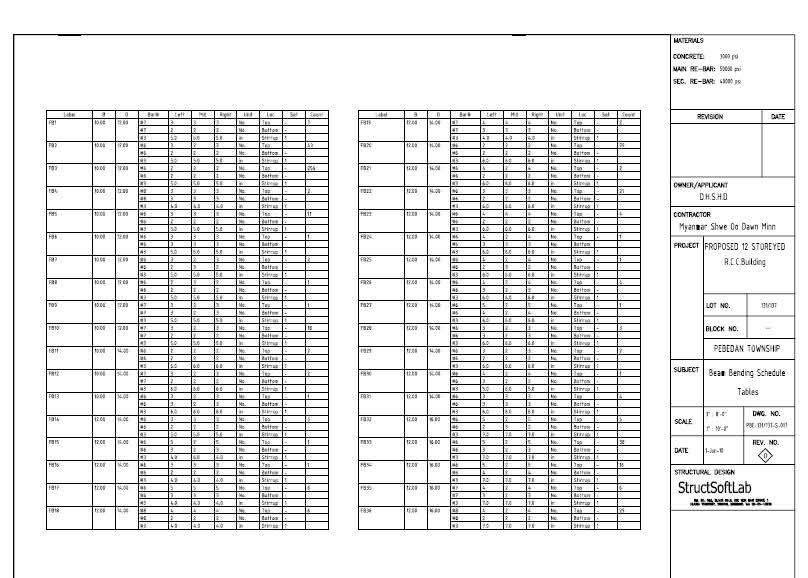

Exports drawings, bar bending arrangement and print tables for irregularity checks PostStruct

Customization in PostStruct

Bar sizes can be gives for detailings and bar bending arrangements
Drawings scale ab be adjusted
Spacing if drawing items can be input
Can select minimum and maximum bar sizes for bar arrangment

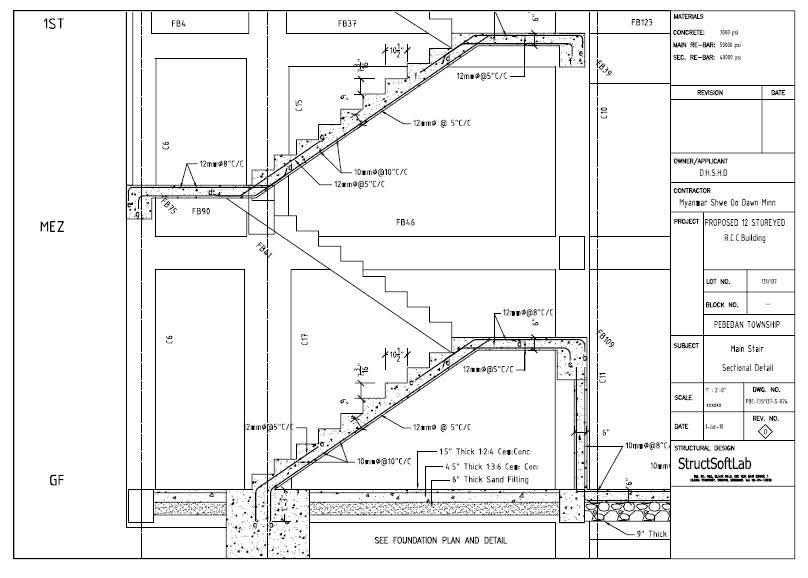

Ramp can be named including "Stair" so that sectional drawing show ramp as the stairs
Drawing scale can be defined
